Robust 6×4 Chassis: The Huashen T5 rear-dual-axle chassis provides exceptional traction and stability for heavy lifting and off-road conditions.
Superior Lifting Power: Optimized for high-capacity cranes (up to 14 tons), featuring reinforced hydraulic outriggers for safe operation.
High-Performance China VI Engine: Equipped with a high-torque engine meeting Euro 6 equivalent standards, ensuring reliability in demanding environments.
T5 Luxury Cabin: The ergonomic cabin design offers a spacious and comfortable workspace for operators, reducing fatigue during long-haul tasks.
Reinforced Frame & Bed: Features a double-layer high-strength steel frame to handle the torsion and stress of heavy crane movements.

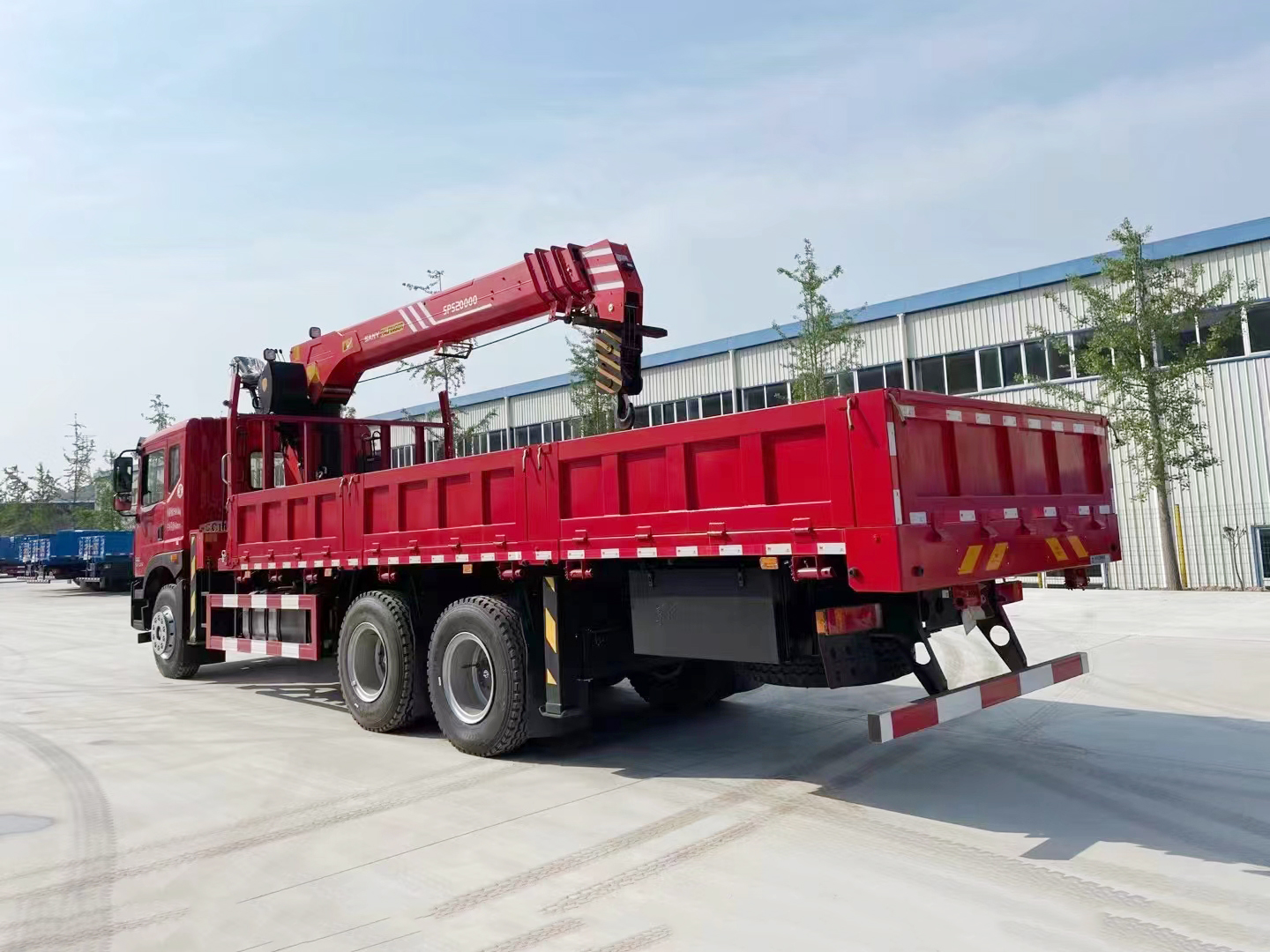

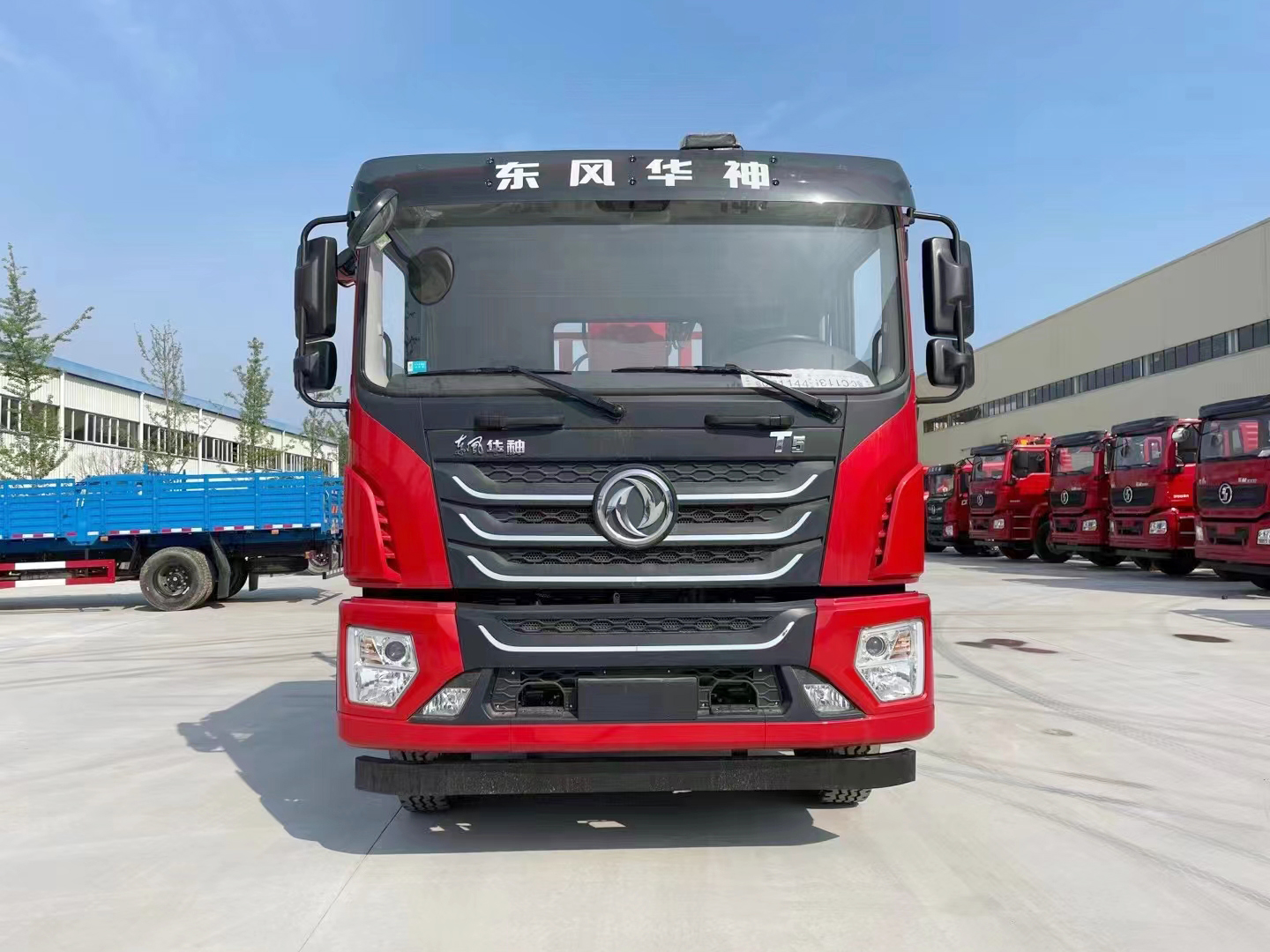

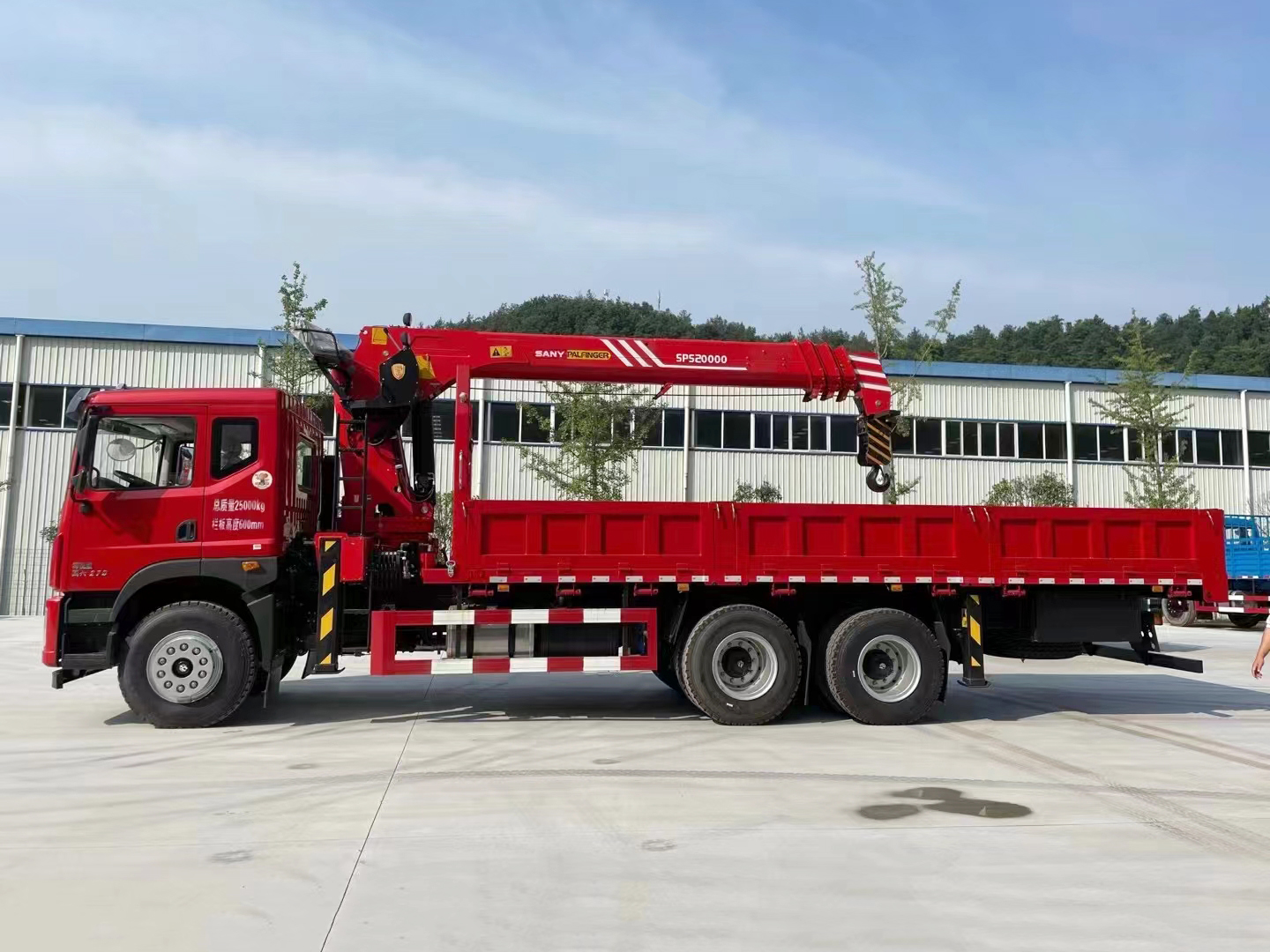

The Dongfeng Huashen T5 6×4 Truck Mounted Crane is a powerhouse in the heavy-duty lifting industry. As a premier 10-wheeler model in the WYKcar export collection, the T5 series is specifically designed for large-scale infrastructure, mining, and logistics projects.
The core strength of the T5 6×4 chassis lies in its dual rear axle configuration, which ensures safe and balanced operations when handling heavy loads up to 14 tons. Unlike standard transport trucks, the T5 is built with a specialized subframe that offers incredible torsional rigidity. This makes it an ideal platform for both telescopic and knuckle boom cranes. With ourT5 6×4 15+ years of industry expertise, we ensure that every Dongfeng Huashen T5 is fully inspected and optimized for the specific demands of your local market, from the rugged terrains of Central Asia to the developing cities of Southeast Asia.
| Item | Specification |
| Chassis Brand | Dongfeng Huashen (T5 Heavy Series) |
| Drive Mode | 6×4 (Rear Dual Axle / 10-Wheeler) 6×4（ |
| Emission Standard | China VI / Euro 6 |
| Lifting Capacity | 10T / 12T / 14T (Optional) |
| Engine Horsepower | 240 HP – 290 HP (Optional) |
| Crane Type | Telescopic or Knuckle Boom |
| Cargo Box Size | 8200 mm – 8500 mm (Customizable) |
| Wheelbase | 4350+1350 mm / 4750+1350 mm |
| Tires | 10.00R20 / 11.00R20 Radial Tires |
The Dongfeng Huashen T5 6×4 Truck Mounted Crane is a heavy-duty workhorse designed for the most challenging lifting and transport environments. Its 10-wheeler configuration provides exceptional stability for:
Large-Scale Infrastructure: Lifting and installing heavy bridge sections, high-capacity steel structures, and massive concrete culverts.
Mining & Industrial Sites: Transporting and self-loading oversized machinery and heavy equipment in off-road and rugged terrains.
Power Grid & Energy Projects: Safe installation of high-voltage transformers and power towers in remote locations.
Port & Logistics Hubs: Efficiently handling bulky cargo and heavy containers where fixed cranes are unavailable.
Emergency Salvage & Rescue: Providing high-torque lifting support for heavy debris clearance and large vehicle recovery operations.
Looking for a reliable heavy-duty lifting partner? WYKcar offers the Dongfeng Huashen T5 6×4 Truck Mounted Crane at direct factory-to-port prices.
15+ Years Industry Wisdom: Leverage our deep 4S dealership background and professional export expertise.
Customized Heavy-Duty Solutions: Choose between 10T, 12T, or 14T cranes from leading brands like XCMG or Sany.
Verified Quality Inspection: Every Huashen T5 undergoes a rigorous 100-point pre-shipment quality check.
Seamless Global Logistics: We manage all documentation and shipping to ensure safe delivery to over 30 countries.
Inquire today to receive your customized 2026 price list and a technical data sheet!
