Reliable 6×4 Chassis: The Dongfeng K5 (KL Series) 10-wheeler chassis provides excellent traction and stability for heavy-duty lifting and off-road conditions.
Efficient China VI Engine: Equipped with a high-torque engine compliant with China VI (Euro 6 equivalent) standards, offering fuel efficiency and low maintenance costs.
Powerful Lifting Capacity: Optimized for cranes ranging from 10 to 14 tons, with options for telescopic or knuckle boom configurations.
Reinforced Flatbed: Features a high-strength steel cargo box designed to handle oversized loads and heavy materials with ease.
User-Friendly Control: Integrated hydraulic control system with high-pressure gear pumps and ergonomic operation levers for precise crane movement.

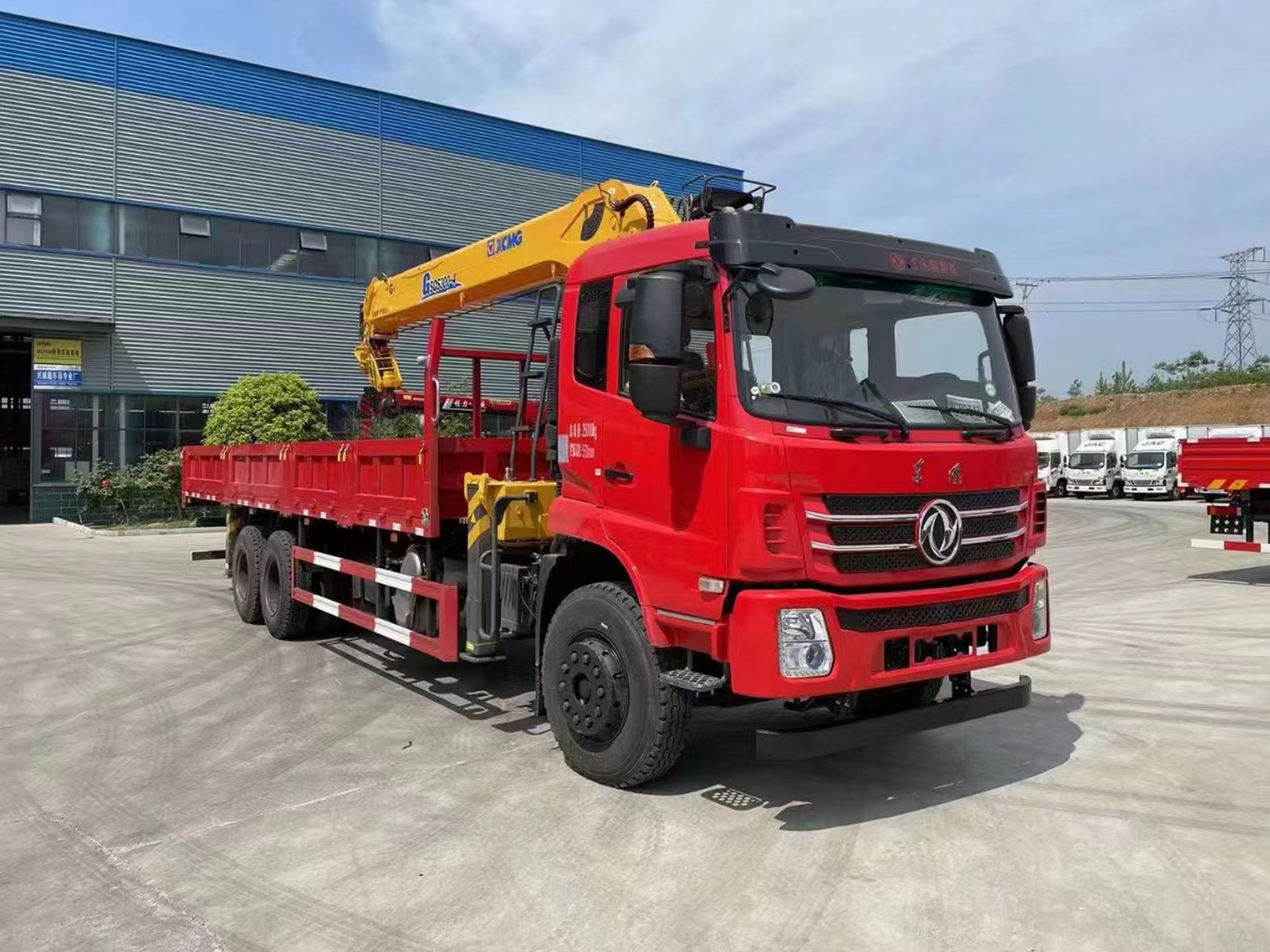

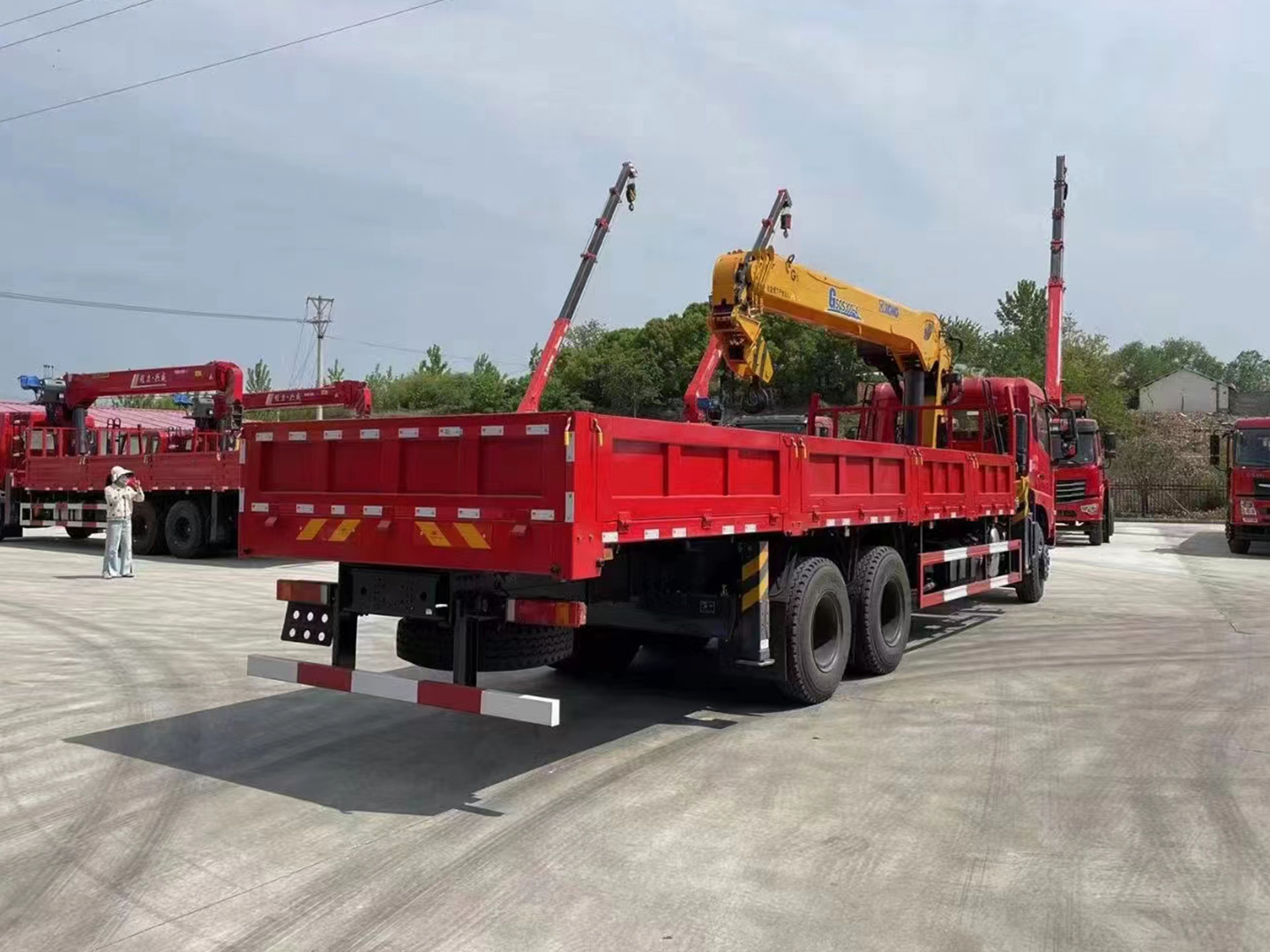

The Dongfeng K5 6×4 Truck Mounted Crane is a versatile heavy-duty lifting solution engineered for modern infrastructure and industrial logistics. As a cornerstone of the WYKcar commercial vehicle lineup, this 10-wheeler crane truck combines the world-class durability of the Dongfeng KL series with state-of-the-art hydraulic engineering.
Designed for performance in the most challenging environments—from the construction sites of Central Asia to the logistics hubs of Southeast Asia—the K5 6×4 chassis ensures maximum stability during high-altitude operations. The integrated crane, available in capacities up to 14 tons, allows for self-loading and unloading, significantly reducing labor costs and increasing operational efficiency. With 15 years of automobile group expertise, we ensure that every Dongfeng K5 exported meets rigorous quality standards, providing our international partners with a reliable, long-term asset for their fleet.
| Item | Specification |
| Chassis Brand | Dongfeng KL (K5 Series) |
| Drive Mode | 6×4 (10-Wheeler) |
| Lifting Capacity | 10 Tons / 12 Tons / 14 Tons (Optional) |
| Emission Standard | China VI / Euro 6 |
| Engine Horsepower | 245 HP – 290 HP (Cummins/Yuchai Optional) |
| Crane Type | Telescopic Arm or Knuckle Boom |
| Cargo Box Size | 8200 – 8500 x 2400 x 550 mm |
| Hydraulic System | High-Pressure Gear Pump with Multi-Way Valves |
| Outriggers | 4 x Hydraulic H-Type Outriggers |
The Dongfeng K5 6×4 Truck Mounted Crane is a high-performance, multi-functional vehicle widely used in various demanding industries. Its robust 10-wheeler chassis and precision hydraulic lifting system make it the preferred choice for:
Infrastructure & Construction: Efficiently lifting and transporting heavy building materials such as steel beams, concrete culverts, and large machinery.
Municipal Maintenance: Ideal for urban projects including street light installation, bridge maintenance, and public utility repairs.
Logistics & Warehousing: Streamlining the self-loading and unloading process for oversized cargo, reducing labor costs and improving efficiency.
Power & Telecommunications: Supporting the installation of high-voltage power poles, transformers, and communication towers in diverse terrains.
Emergency & Rescue: Reliable performance for clearing heavy debris and assisting in emergency salvage or recovery operations.
