National VI Standard: Meets the latest emission standards for eco-friendly operation.
High Compression Ratio: The Dongfeng Tuyi compactor garbage truck compresses waste efficiently to maximize load capacity.
Compact Design: Perfect for navigating narrow residential areas and small alleys.

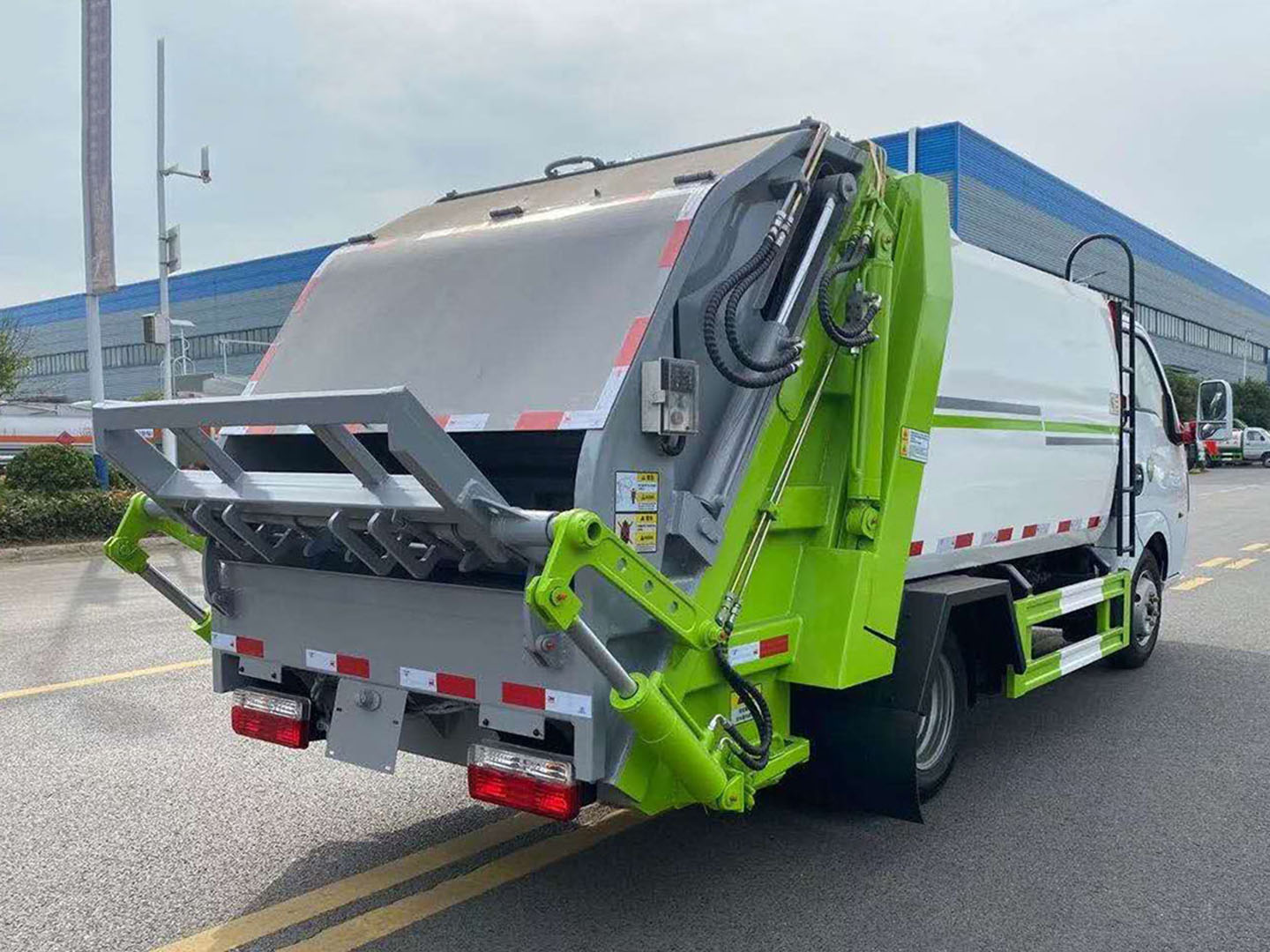

Hydraulic System: Reliable hydraulic components ensure smooth lifting and compressing operations.

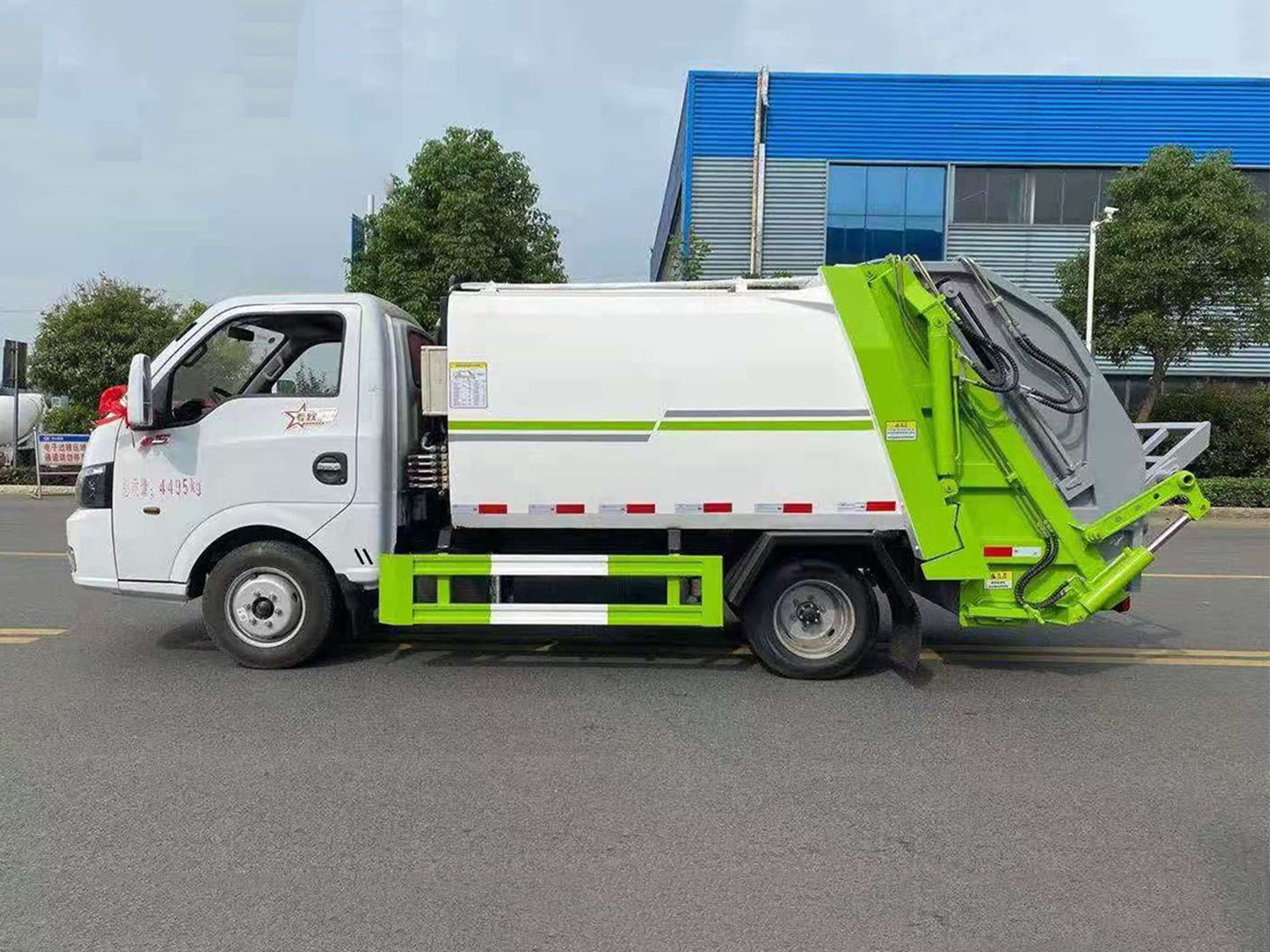

Chassis Parameters
Product Name: Dongfeng Tuyi Compactor Garbage Truck
Chassis Model: Dongfeng EQ1045
Drive Type: 4×2 (Left Hand Drive)
Engine: Quanchai / Liuzhou Machinery (National VI)
Horsepower: 95 HP / 115 HP
Transmission: 5-Speed Manual
Tire Size: 6.00R15 Steel Wire Tire
Wheelbase: 2800 mm
Overall Dimensions: Approx. 5995 x 1900 x 2250 mm
Upper Body Parameters
Body Capacity: 4 Cubic Meters (4 CBM)
Body Material: Q345 High-strength Manganese Steel
Compression Ratio: 1:3 to 1:4
Control System: PLC Electric Control + Manual Control (Dual System)
Loading Mechanism: Rear hanging bucket mechanism (suitable for 120L/240L plastic bins)
Sewage Tank: Large capacity sewage tank to prevent leakage
Cycle Time: ≤ 25 seconds
Dongfeng Tuyi Compactor Garbage Truck is specifically designed for urban sanitation departments that need to operate in restricted spaces. Thanks to its compact chassis and small turning radius, this truck can easily navigate through narrow alleys, crowded residential communities, and old city districts where larger heavy-duty trucks cannot access. It serves as an excellent “satellite” collection vehicle that can transfer waste to larger stations.
Efficient Waste Management for Communities
This vehicle is widely used in residential areas, schools, factories, and hospitals. Its high-performance hydraulic compression system allows it to compress loose garbage effectively, increasing the loading capacity by up to 3-4 times compared to ordinary trucks. This means fewer trips to the disposal site and higher operational efficiency for sanitation companies.
Environmental Friendly Operation
Equipped with a National VI compliant engine, the Dongfeng Tuyi minimizes exhaust emissions, making it suitable for city centers with strict environmental regulations. Furthermore, the fully sealed body design and the sewage collection tank ensure that there is no leakage of liquid waste during transportation, preventing secondary pollution to the road surface and eliminating bad odors.

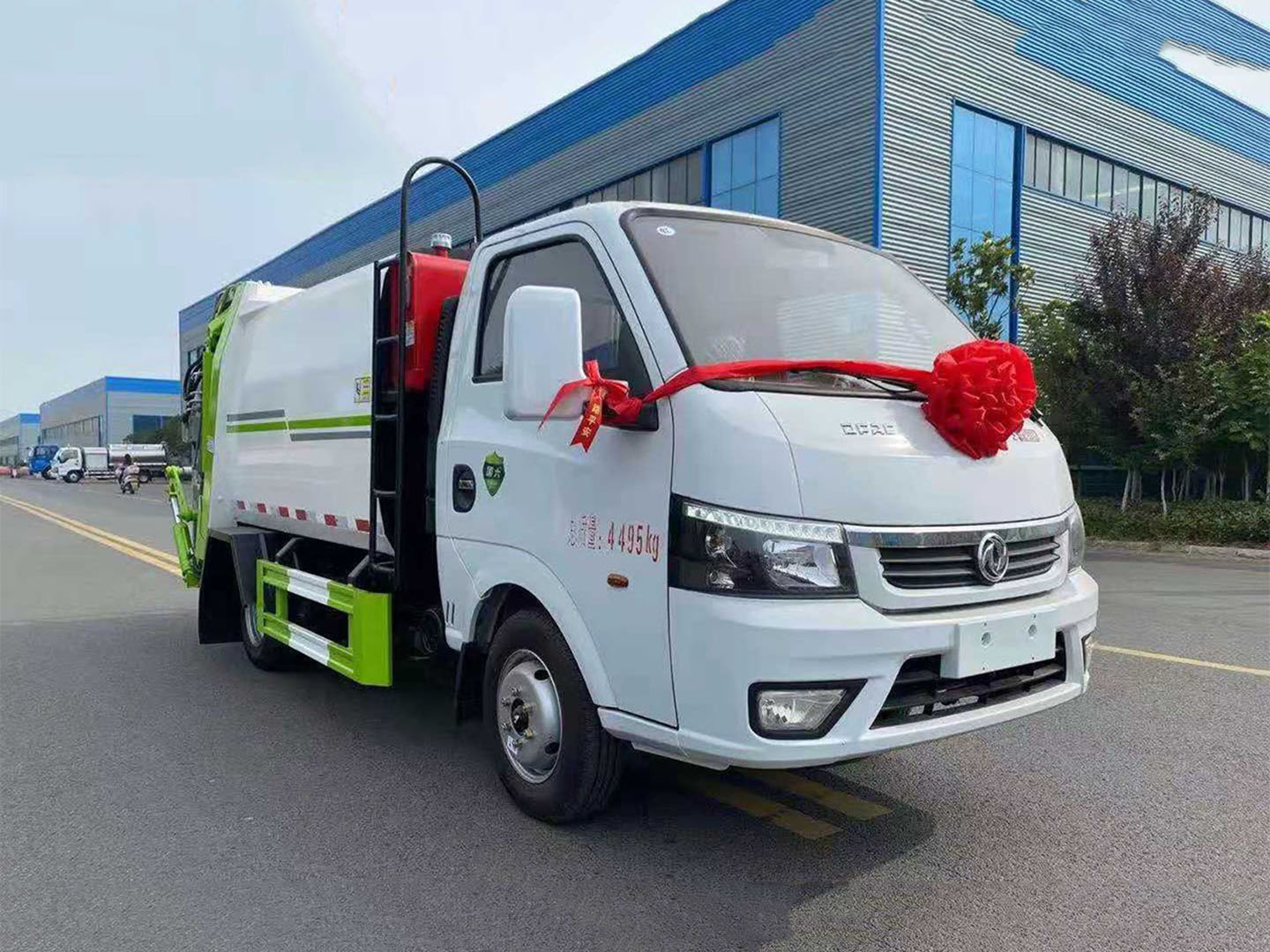

Versatile Loading Options
The rear lifting mechanism is compatible with standard 120L and 240L trash bins, making the collection process automated and reducing the labor intensity for sanitation workers. The dual control system inside the cab and at the rear ensures safety and convenience during operation.
